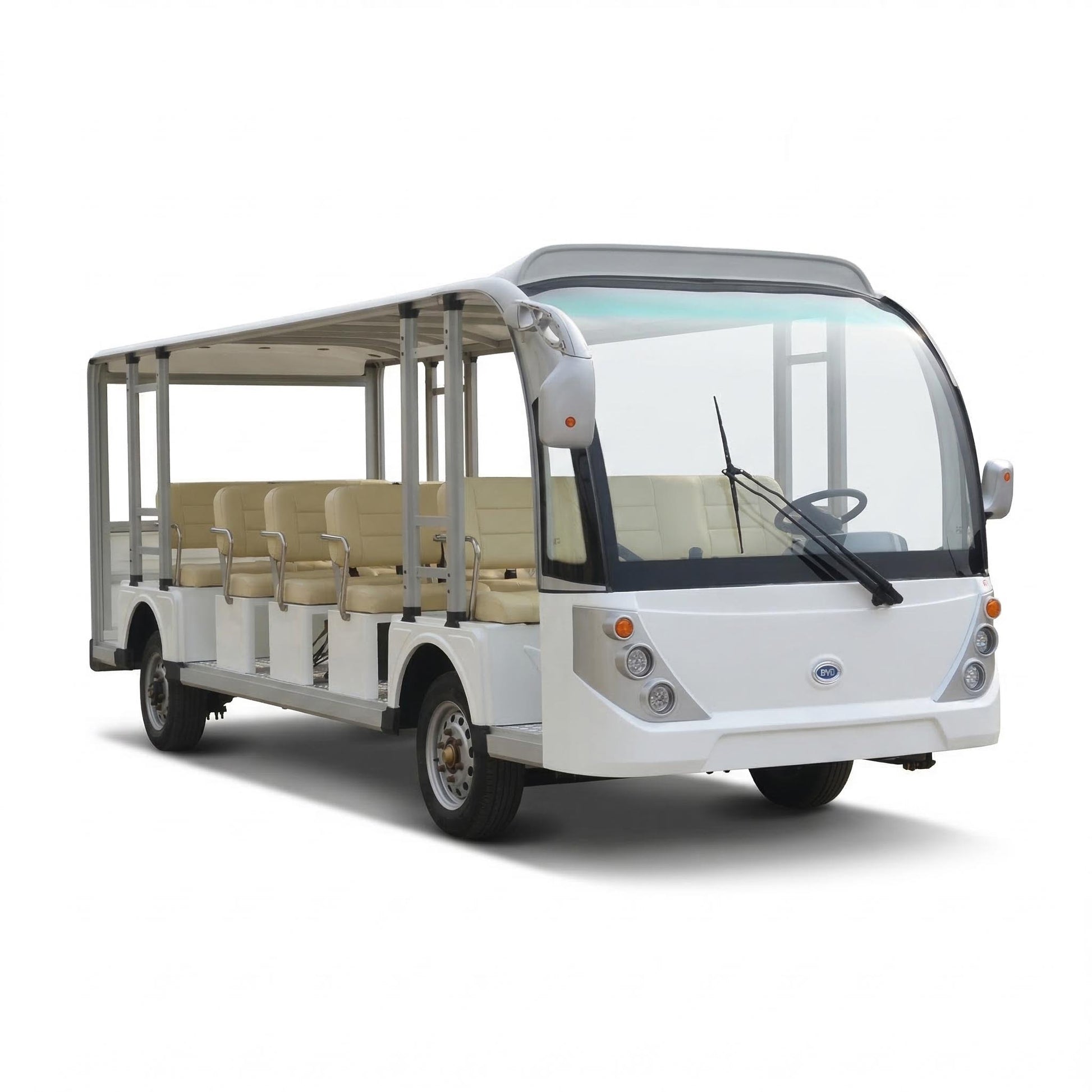

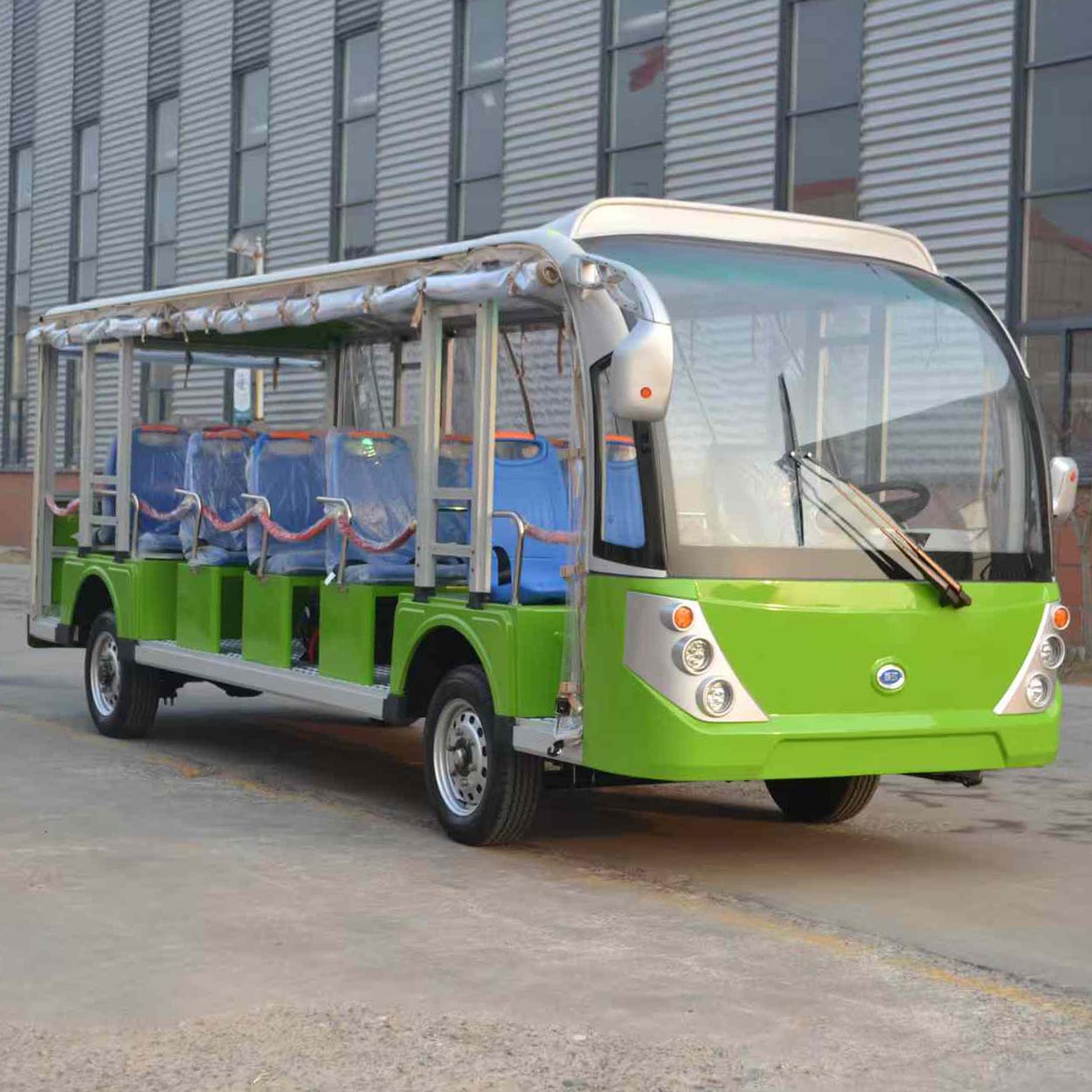

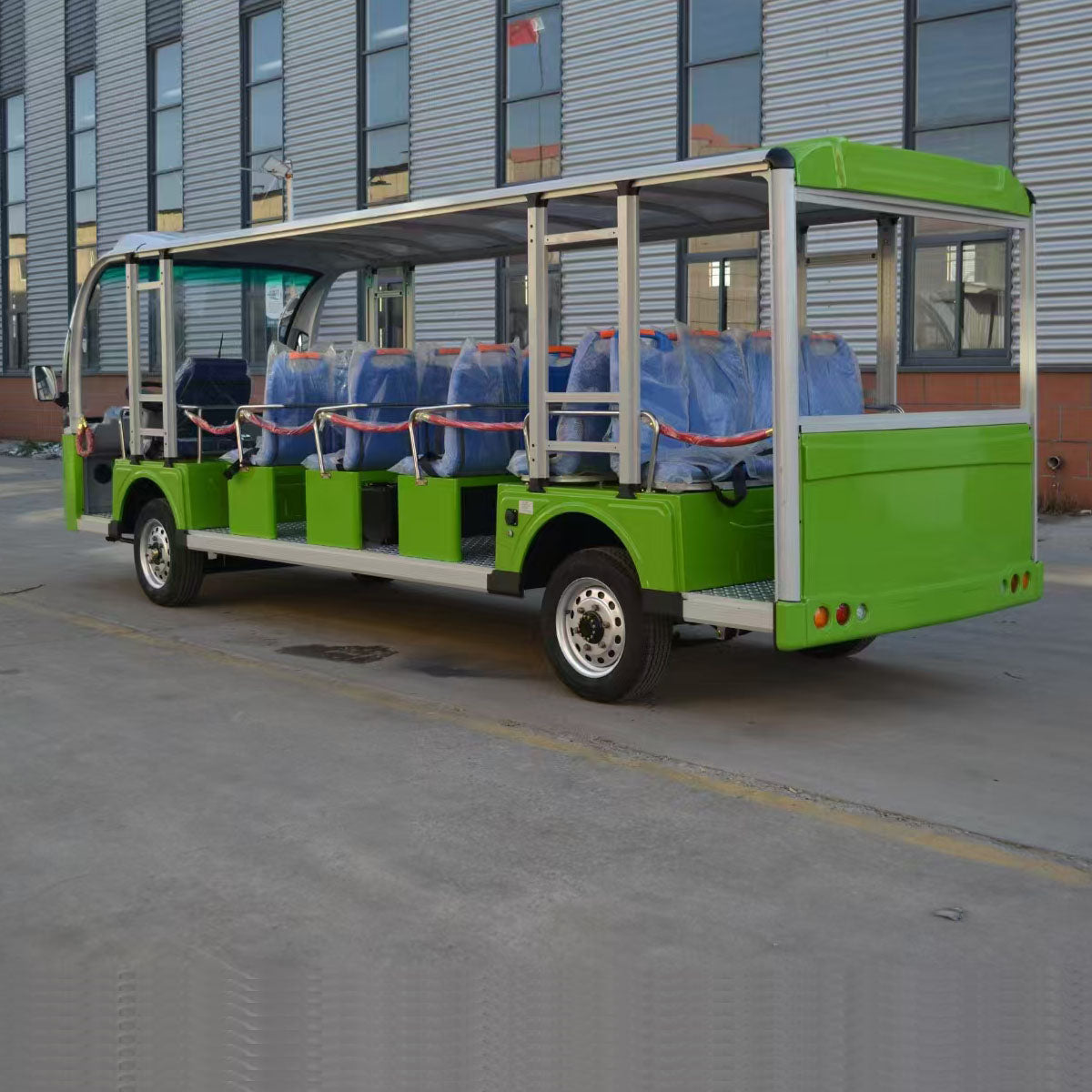

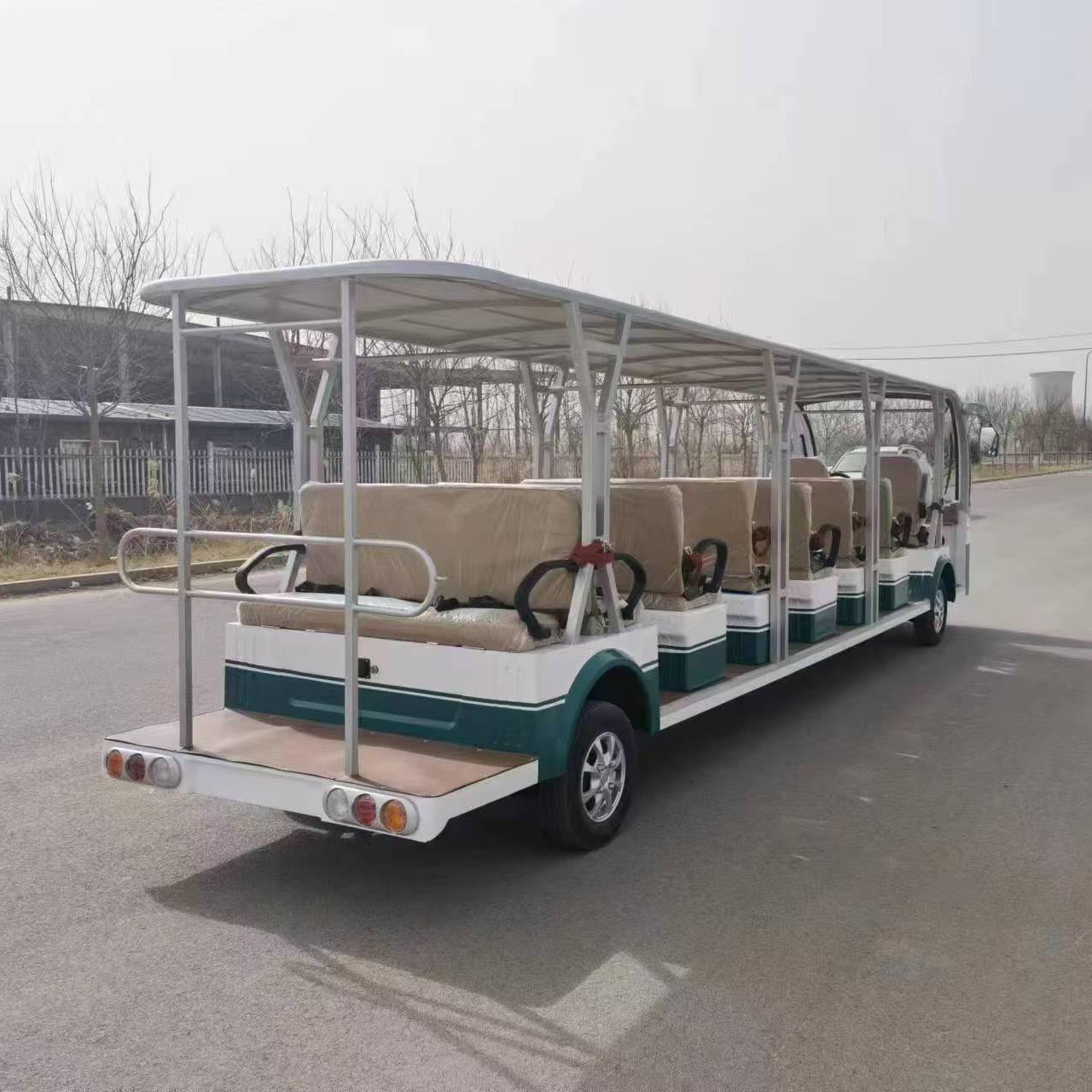

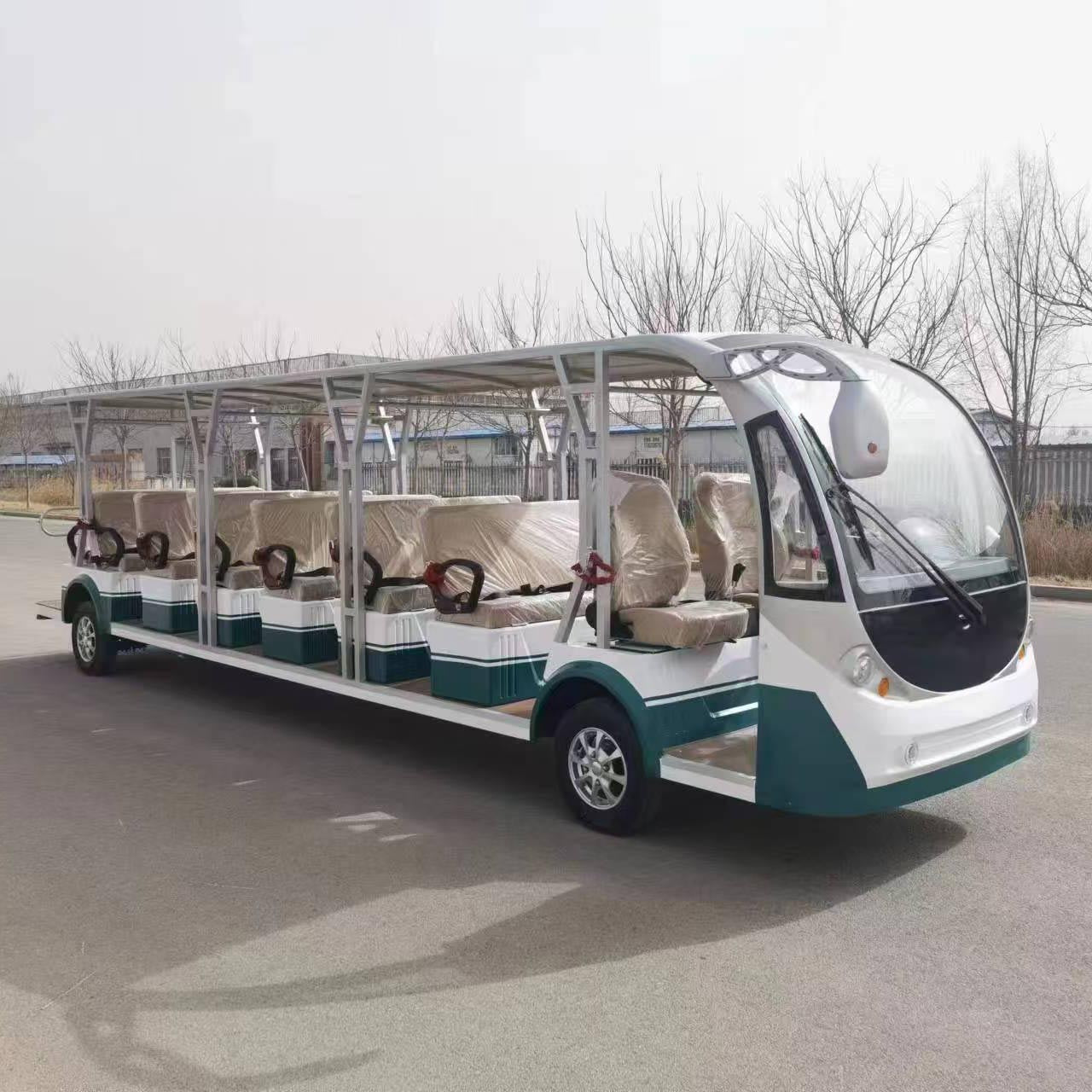

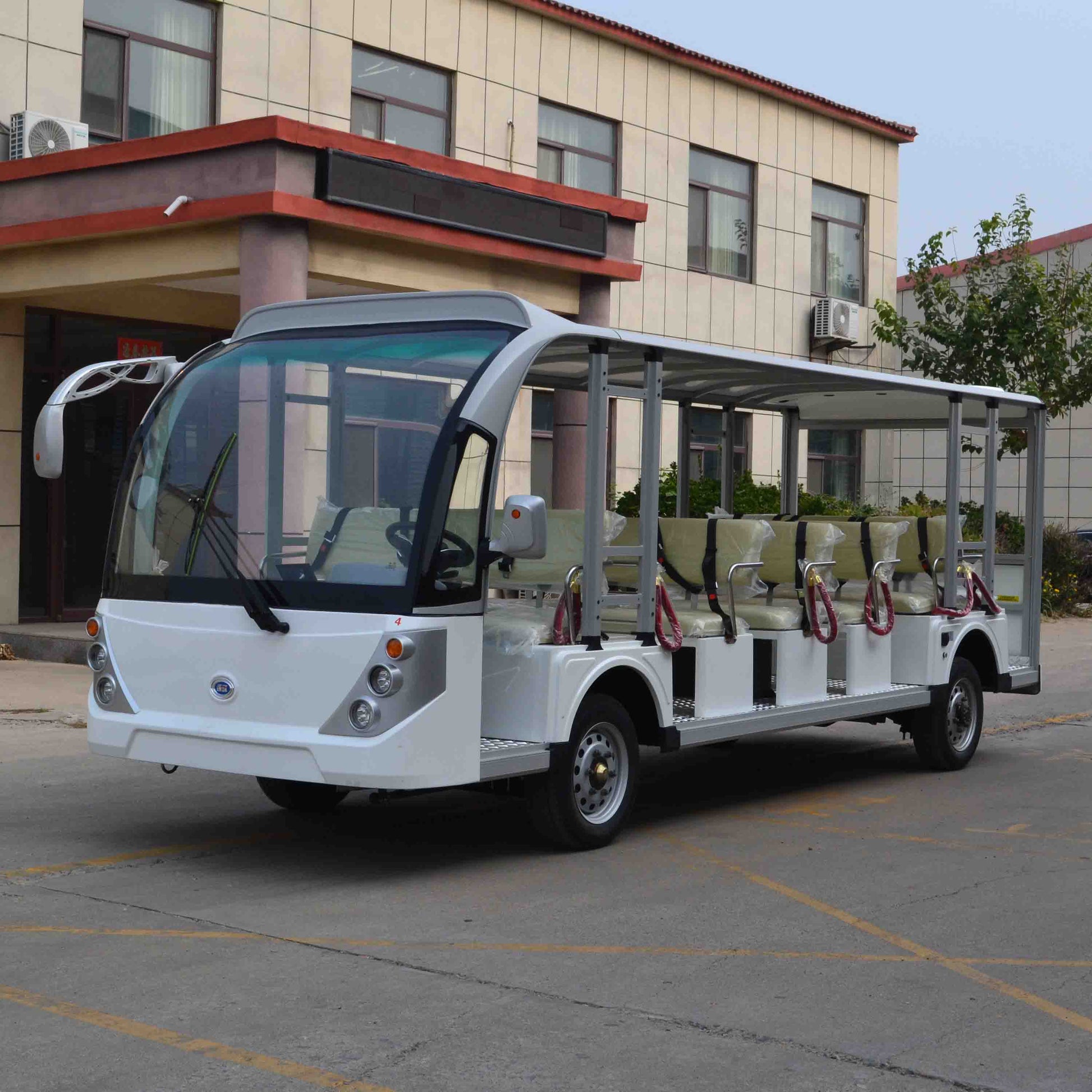

YIPU-SC-O 23S – 23-Seater Electric Sightseeing Vehicle | 96V Lithium Tour Tram
The YIPU-SC-O 23S is a high-capacity 23-passenger electric sightseeing vehicle engineered for theme parks, large resorts, tourist attractions, and campus transport. Powered by a 96V lithium battery system with a 15KW AC motor, this model delivers extended range, quiet operation, and zero emissions for high-demand commercial environments.
🚌 Model Overview
| Feature | Specification |
|---|---|
| Model | YIPU-SC-O 23S |
| Seating Capacity | 23 passengers |
| Power System | 96V Lithium Battery |
| Motor | 15KW Three-Phase Asynchronous AC Motor with Regenerative Braking |
| Body Dimensions | 6300 × 1830 × 2250 mm |
| Wheelbase | 3760 mm |
| Front/Rear Track Width | 1500 mm / 1510 mm |
| Minimum Ground Clearance | 150 mm |
| Curb Weight | 1500 kg |
| Payload Capacity | 2018 kg |
| Ideal For | Theme parks, large resorts, tourist attractions, campus shuttles, airports |
🔋 Electrical System
| Component | Specification |
|---|---|
| Electronic Control System | 96V-400A fully intelligent controller with anti-rollaway function, Brand: Haige |
| Battery | 96V 200Ah Lithium Battery, Brand: Jisu Blue Sky (3-year warranty) |
| Electric Motor | 15KW three-phase asynchronous AC motor with regenerative braking function |
| Charger | 96V-30A aviation aluminum intelligent on-board charger, auto power-off when fully charged |
| Charging Time | 8-10 hours (at 80% discharge rate) |
| Charging Input Voltage | 220V |
| Driving Range | 100-120 km |
⚙️ Performance Specifications
| Specification | Details |
|---|---|
| Maximum Speed | 30 km/h |
| Maximum Gradeability | 20% |
| Braking Distance | ≤6.5 m |
| Minimum Turning Radius | 6.5 m |
🪑 Body & Interior System
| Component | Specification |
|---|---|
| Seats |
Front: 1+1 configuration, leather + high-resilience PU material, stainless steel armrests Rear: Three-seat benches (leather + high-resilience PU, stainless steel armrests) |
| Body Construction | Carbon steel frame (Q235) + Sheet metal body / ABS engineering plastic molded parts |
| Instrument Panel | LCD display showing voltage, current, speed, mileage, lighting, forward/reverse signals |
| Rearview Mirrors | Wide-view adjustable manual exterior rearview mirrors |
| Lighting & Signals | Combined LED headlights, turn signals, combined taillights, brake lights, electric horn, reverse buzzer |
| Audio System | MP3 player with professional speakers |
| Switches | Ignition switch, combined light/wiper switch, forward/reverse switch, emergency power cutoff |
| Windshield | Front windshield: 3+2 laminated glass |
| Doors | None (open-air design) |
| Paint | Automotive-grade standard paint, computer-matched color, professional spraying equipment |
🔧 Chassis & Suspension System
| Component | Specification |
|---|---|
| Frame | Welded carbon steel frame (Q235) with high-temperature anti-rust powder coating |
| Steering Wheel | Polyurethane foam steering wheel |
| Powertrain System | Continuously Variable Transmission (CVT) system |
| Steering System | Rack and pinion steering + electronic power steering (EPS) |
| Front Axle & Suspension | Integrated load-bearing front axle |
| Rear Axle & Suspension | Integrated rear axle with aviation aluminum differential assembly + high-strength leaf springs + tubular hydraulic shock absorbers |
| Braking System | Drum hydraulic brakes, dual-circuit hydraulic braking, parking brake system |
| Wheels & Tires | 195R7015C tires |
🌟 Key Features & Benefits
| Feature | Benefit |
|---|---|
| 96V Lithium Battery | 3-year warranty, lightweight, fast charging, 100-120km range |
| 15KW AC Motor with Regenerative Braking | Superior power, energy recovery extends range |
| Anti-Rollaway Function | Enhanced safety on slopes and during loading/unloading |
| Electronic Power Steering (EPS) | Effortless maneuverability for drivers |
| High Passenger Capacity | 23 seats – maximize efficiency per trip |
| Dual-Circuit Hydraulic Brakes | Reliable stopping power in all conditions |
| Laminated Glass Windshield | Safety and durability |
| One-Year Warranty + Lifetime Support | Peace of mind for fleet operators |
🌍 Ideal Applications
| Industry | How YIPU-SC-O 23S Is Used |
|---|---|
| Theme Parks & Amusement Parks | High-capacity guest transport between attractions |
| Large Resorts & Hotels | Shuttle service for guests across expansive properties |
| Tourist Attractions | Guided tours of historical sites, gardens, and scenic areas |
| University Campuses | Student and faculty transport across large campuses |
| Airports | Passenger transfer between terminals and parking lots |
| Convention Centers | Attendee shuttles during large events |
| Zoos & Wildlife Parks | Quiet, emission-free animal-friendly transport |
🎨 Customization Options
| Option | Available Choices |
|---|---|
| Seat Upholstery | Standard leather or premium upgrade |
| Seat Color | Custom colors available |
| Roof Type | Open-air, half enclosure, full enclosure |
| Audio Upgrade | Bluetooth connectivity, PA system for guided tours |
| Lighting Package | Additional LED accent lights |
| Branding | Custom logos, decals, fleet numbering |
| ADA Compatibility | Wheelchair lift option available |
✅ Why Choose YIPU-SC-O 23S
| Advantage | Benefit |
|---|---|
| High Capacity | 23 passengers – reduce trips and labor costs |
| Lithium Power | 3-year battery warranty, 100-120km range |
| Premium Components | Haige controller, Jisu Blue Sky battery |
| Regenerative Braking | Extends range, reduces brake wear |
| Low Operating Cost | Electricity costs 80% less than fuel vehicles |
| Quiet Operation | Zero noise pollution, enhances guest experience |
| Zero Emissions | Environmentally friendly, supports green initiatives |
| Export Ready | Full documentation for international shipping |
📦 Warranty & Support
| Coverage | Details |
|---|---|
| Vehicle Warranty | One-year comprehensive warranty |
| Battery Warranty | 3-year warranty on Jisu Blue Sky lithium battery |
| Technical Support | Lifelong technical support |
| Spare Parts | Available upon request |
📏 Technical Specifications Summary
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 6300 × 1830 × 2250 mm |
| Wheelbase | 3760 mm |
| Front/Rear Track Width | 1500 mm / 1510 mm |
| Minimum Ground Clearance | 150 mm |
| Curb Weight | 1500 kg |
| Payload Capacity | 2018 kg |
| Passenger Capacity | 23 persons |
| Max Speed | 30 km/h |
| Max Gradient | 20% |
| Braking Distance | ≤6.5 m |
| Minimum Turning Radius | 6.5 m |
| Battery | 96V 200Ah Lithium (Jisu Blue Sky) |
| Motor | 15KW AC with regenerative braking |
| Controller | 96V-400A with anti-rollaway (Haige) |
| Charging Time | 8-10 hours |
| Driving Range | 100-120 km |
| Charging Input Voltage | 220V |
| Tires | 195R7015C |
📦 Shipping & Delivery
| Destination | Estimated Transit Time |
|---|---|
| USA (West Coast) | 18-22 days by sea |
| USA (East Coast) | 25-30 days by sea |
| Israel | 20-25 days by sea |
| Europe | 25-30 days by sea |
| UAE/Middle East | 18-22 days by sea |
| Southeast Asia | 15-20 days by sea |
Shipping Terms: FOB, CIF, DDP available upon request.
