YIPU-FT 2T – 2-Seater Electric Fire Truck | 48V/72V with 1600L Water Tank & Professional Fire Pump
The YIPU-FT 2T is a purpose-built electric fire truck designed for rapid first response in industrial facilities, resorts, golf courses, rural areas, and locations where traditional fire trucks cannot easily access. Available in both 48V and 72V configurations, this compact firefighting vehicle carries a 1600L water tank, professional 11HP fire pump, and a full suite of on-board firefighting tools.
🚒 Model Overview
| Feature | Specification |
|---|---|
| Model | YIPU-FT 2T |
| Seating Capacity | 2 passengers (1+1 configuration) |
| Available Configurations | 48V / 72V |
| Body Dimensions | 4300 × 1470 × 2000 mm |
| Wheelbase | 2170 mm |
| Front/Rear Track Width | 1235 mm / 1235 mm |
| Minimum Ground Clearance | 150 mm |
| Curb Weight | 1350 kg |
| Payload Capacity | 2000 kg (including water and equipment) |
| Water Tank Capacity | 1600L |
| Ideal For | Industrial parks, resorts, golf courses, rural fire response, airports, campuses |
🔋 Performance Comparison: 48V vs 72V
Choose the configuration that best fits your operational requirements:
| Specification | 48V Configuration | 72V Configuration |
|---|---|---|
| Controller | 48V-350A fully intelligent controller, Brand: Enpower | 72V-350A fully intelligent controller, Brand: Inbol |
| Battery | 6V 200Ah × 8 units (48V), Brand: Tianneng | 6V 200Ah × 12 units (72V), Brand: Tianneng |
| Motor | 5KW three-phase asynchronous AC motor, Brand: Depuda | 5KW three-phase asynchronous AC motor, Brand: Depuda |
| Charger | Aviation aluminum intelligent on-board charger, auto power-off | Aviation aluminum intelligent on-board charger, auto power-off |
| Charging Time | 8-10 hours (80% discharge rate) | 8-10 hours (80% discharge rate) |
| Charging Input Voltage | 220V | 220V |
| Operating Range | 60-80 km | 100-120 km |
| Max Speed | 28 km/h | 28 km/h |
| Max Gradient | 20% | 20% |
| Braking Distance | ≤5 m | ≤5 m |
| Minimum Turning Radius | 4.5 m | 4.5 m |
🧯 Firefighting Equipment & Accessories
| Component | Specification |
|---|---|
| Water Tank | 1600L capacity |

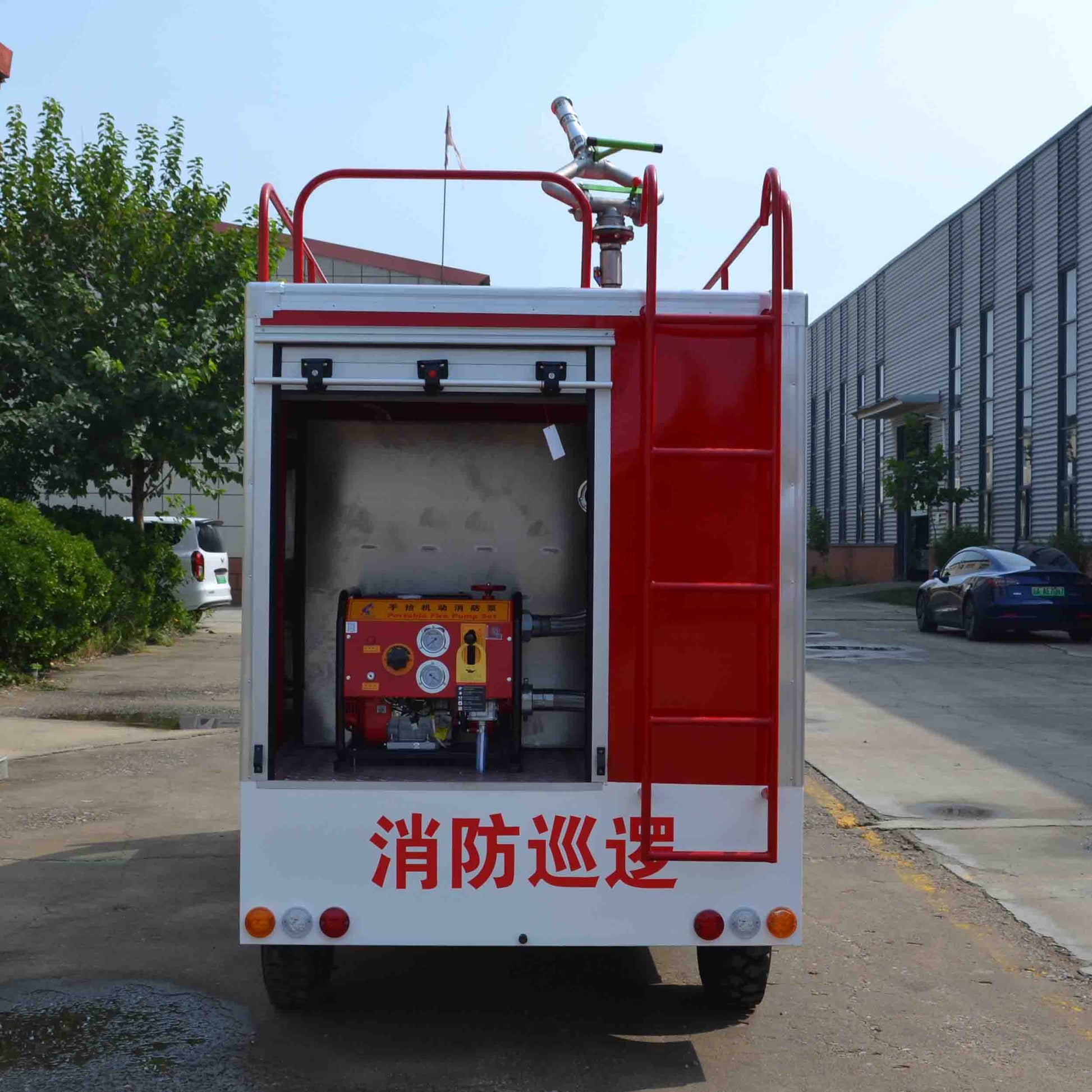

| Fire Pump | Automatic professional fire pump, 11 HP, fuel capacity: 4L (gasoline), range: 25m, head: 50m |
| Fire Extinguishers | 4 dry powder fire extinguishers |
| Fire Rescue Tools | Fire rescue cutters |
| Hand Tools | Fire axe, fire shovel, fire wrench |
| Fire Hoses | 2 × 2.5-inch 25m fire hoses |
| Nozzle | 1 professional fire nozzle |
🪑 Interior & Body System
| Component | Specification |
|---|---|
| Seats | Front: 1+1 configuration, leather + high-resilience PU, beige seats |
| Body Construction | Carbon steel frame (Q235) + Sheet metal body + ABS engineering plastic molded dashboard |
| Instrument Panel | LCD display showing voltage, current, speed, mileage, lighting, forward/reverse signals |
| Rearview Mirrors | Wide-view adjustable manual exterior rearview mirrors |
| Lighting & Signals | Combined LED headlights, turn signals, taillights, brake lights, electric horn, reverse buzzer |
| Audio System | Premium car audio with MP3 player, professional speakers, USB port, storage compartment, cup holders |
| Switches | Ignition switch, combined light/wiper switch, forward/reverse switch |
| Doors | Removable carbon steel doors (Q235) with built-in tempered glass sliding windows |
| Frame | Welded carbon steel frame (Q235) with high-temperature anti-rust powder coating |
| Steering Wheel | Luxury polyurethane foam steering wheel |
🔧 Chassis & Suspension System
| Component | Specification |
|---|---|
| Powertrain System | Automatic transmission / CVT system |
| Steering System | Rack and pinion steering (automatic clearance compensation) + EPS electronic power steering |
| Front Axle & Suspension | Integrated front axle |
| Rear Axle & Suspension | Integrated rear axle / aviation aluminum differential assembly / high-strength leaf springs / tubular hydraulic shock absorbers |
| Braking System | Drum hydraulic brakes, dual-circuit hydraulic braking, parking brake system, brake booster |
| Wheels | 650-10 five-hole steel rim wheels |
🌟 Key Features & Benefits
| Feature | Benefit |
|---|---|
| 1600L Water Tank | Substantial water capacity for initial fire response |
| 11HP Professional Fire Pump | 25m range, 50m head – effective firefighting capability |
| Complete Tool Set | 4 extinguishers, hoses, nozzles, rescue cutters, axes – ready for action |
| Dual Voltage Options | Choose 48V for standard use or 72V for extended range |
| Compact Size | Access narrow paths where traditional fire trucks cannot reach |
| Removable Doors | All-weather protection with built-in sliding windows |
| Premium Components | Enpower/Inbol controllers, Tianneng batteries, Depuda motor |
| Quiet Electric Operation | Silent approach, no disturbance during non-emergency use |
| Zero Emissions | Environmentally friendly, safe for indoor/outdoor use |
| 2,000kg Payload Capacity | Carries full water tank plus equipment with ease |
🌍 Ideal Applications
| Industry | How YIPU-FT 2T Is Used |
|---|---|
| Industrial Parks | First response for small fires, facility protection |
| Resorts & Hotels | Rapid response across expansive properties |
| Golf Courses | Fire protection across fairways and clubhouse areas |
| Rural & Wildland Areas | Access narrow trails for wildfire first response |
| Airports | Support vehicle for ground operations |
| University Campuses | Campus fire safety and rapid response |
| Gated Communities | Community fire protection |
| Seaports & Marinas | Waterfront fire response capability |
🎨 Customization Options
| Option | Available Choices |
|---|---|
| Battery Configuration | 48V (60-80km range) or 72V (100-120km range) |
| Water Tank Capacity | Custom sizing available |
| Pump Options | Higher capacity pumps available upon request |
| Tool Configuration | Customize firefighting tool set |
| Lighting Package | Emergency strobe lights, LED light bars |
| Communications | Two-way radio mounting, PA system |
| Branding | Custom logos, decals, fleet numbering |
| Color | Standard fire red or custom colors |
✅ Why Choose YIPU-FT 2T
| Advantage | Benefit |
|---|---|
| Purpose-Built Firefighter | Designed specifically for fire response, not a converted utility vehicle |
| Complete System | Water tank, pump, and tools all included – ready for action |
| Industrial Grade Components | Enpower/Inbol controllers, Tianneng batteries, Depuda motor |
| Compact Access | Reach areas inaccessible to traditional fire trucks |
| All-Weather Operation | Removable doors with glass windows |
| Long Range Options | Up to 120km range for extended patrol |
| Quiet Operation | Silent electric motor for minimal disturbance |
| Zero Emissions | Environmentally friendly, safe for indoor use |
| Export Ready | Full documentation for international shipping |
📦 Warranty & Support
| Coverage | Details |
|---|---|
| Vehicle Warranty | One-year comprehensive warranty |
| Battery Warranty | One-year warranty on Tianneng batteries |
| Pump Warranty | Manufacturer's warranty on fire pump |
| Technical Support | Lifelong technical support |
| Spare Parts | Available upon request |
📏 Technical Specifications Summary
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 4300 × 1470 × 2000 mm |
| Wheelbase | 2170 mm |
| Front/Rear Track Width | 1235 mm / 1235 mm |
| Minimum Ground Clearance | 150 mm |
| Curb Weight | 1350 kg |
| Payload Capacity | 2000 kg |
| Passenger Capacity | 2 persons |
| Water Tank Capacity | 1600L |
| Motor | 5KW three-phase asynchronous AC motor, Brand: Depuda |
| Controller | 48V-350A (Enpower) or 72V-350A (Inbol) |
| Battery | 48V (6V 200Ah × 8) or 72V (6V 200Ah × 12), Brand: Tianneng |
| Max Speed | 28 km/h |
| Max Gradient | 20% |
| Range | 48V: 60-80 km / 72V: 100-120 km |
| Braking Distance | ≤5 m |
| Minimum Turning Radius | 4.5 m |
| Charging Time | 8-10 hours |
| Charging Input Voltage | 220V |
🔥 Fire Pump Specifications
| Specification | Details |
|---|---|
| Pump Type | Automatic professional fire pump |
| Power | 11 HP |
| Fuel Type | Gasoline |
| Fuel Capacity | 4L |
| Water Range | 25 meters |
| Water Head | 50 meters |
🧰 Included Firefighting Tools
| Tool | Quantity |
|---|---|
| Dry Powder Fire Extinguishers | 4 |
| Fire Rescue Cutters | 1 |
| Fire Axe | 1 |
| Fire Shovel | 1 |
| Fire Wrench | 1 |
| 2.5-inch Fire Hoses (25m each) | 2 |
| Fire Nozzle | 1 |
📦 Shipping & Delivery
| Destination | Estimated Transit Time |
|---|---|
| USA (West Coast) | 18-22 days by sea |
| USA (East Coast) | 25-30 days by sea |
| Israel | 20-25 days by sea |
| Europe | 25-30 days by sea |
| UAE/Middle East | 18-22 days by sea |
| Southeast Asia | 15-20 days by sea |
Shipping Terms: FOB, CIF, DDP available upon request.
