YIPU Electric Vehicles Manufacturer
5-Seater Electric Patrol Vehicle – 48V/72V Security Cart with LED Display | YIPU-PC-TT 5S
5-Seater Electric Patrol Vehicle – 48V/72V Security Cart with LED Display | YIPU-PC-TT 5S
Regular price
$4,926.00 USD
Regular price
$4,926.00 USD
Sale price
$4,926.00 USD
Quantity
Couldn't load pickup availability

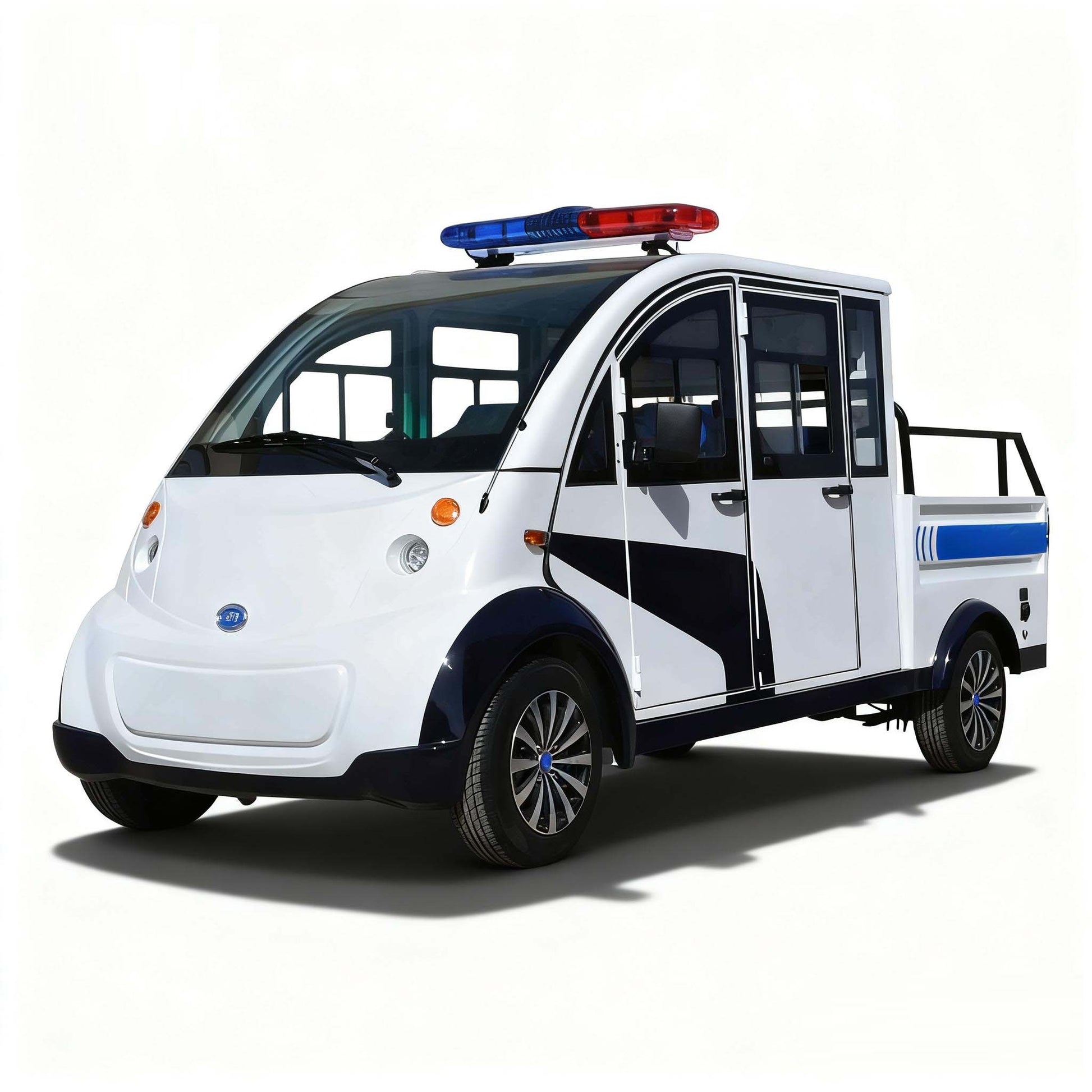

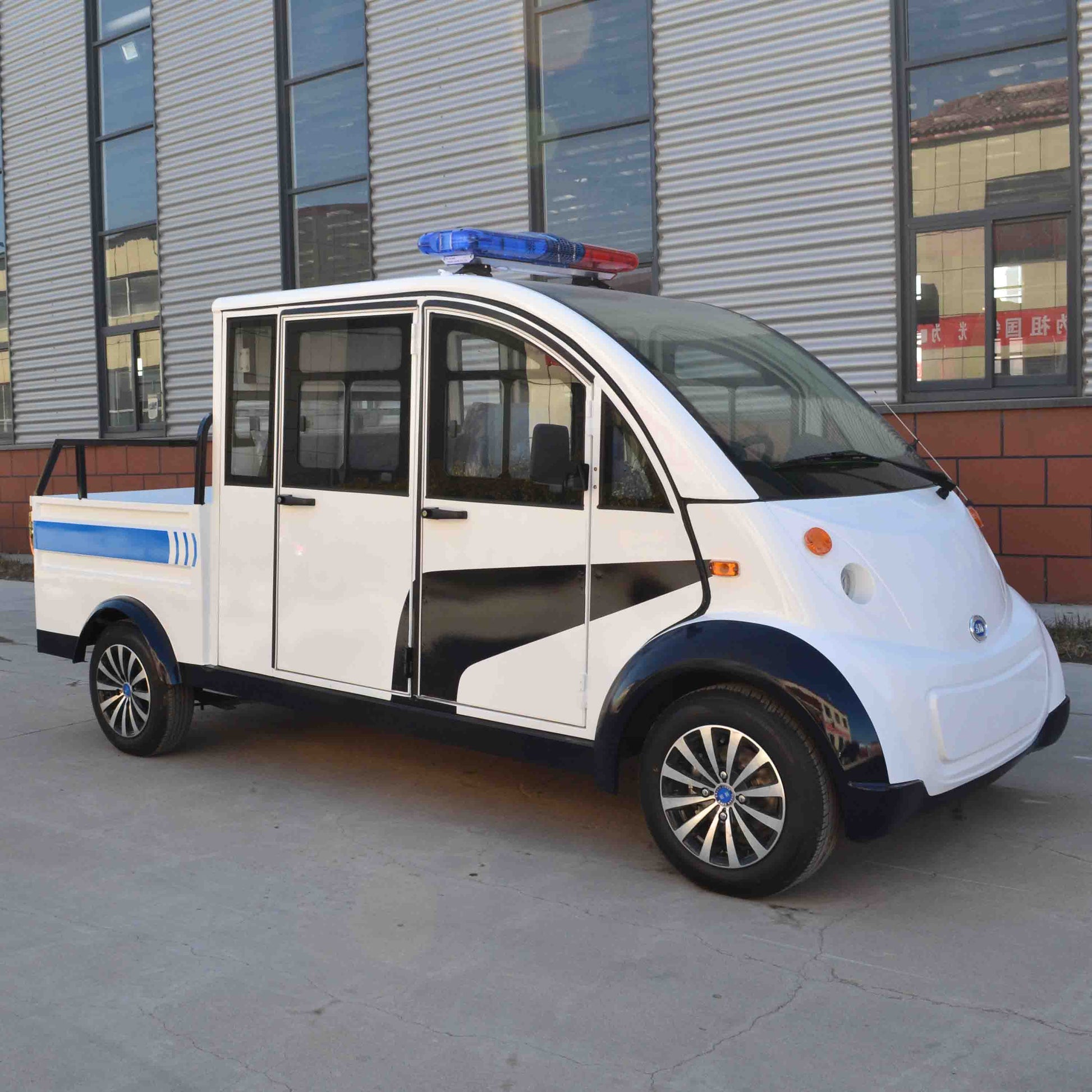

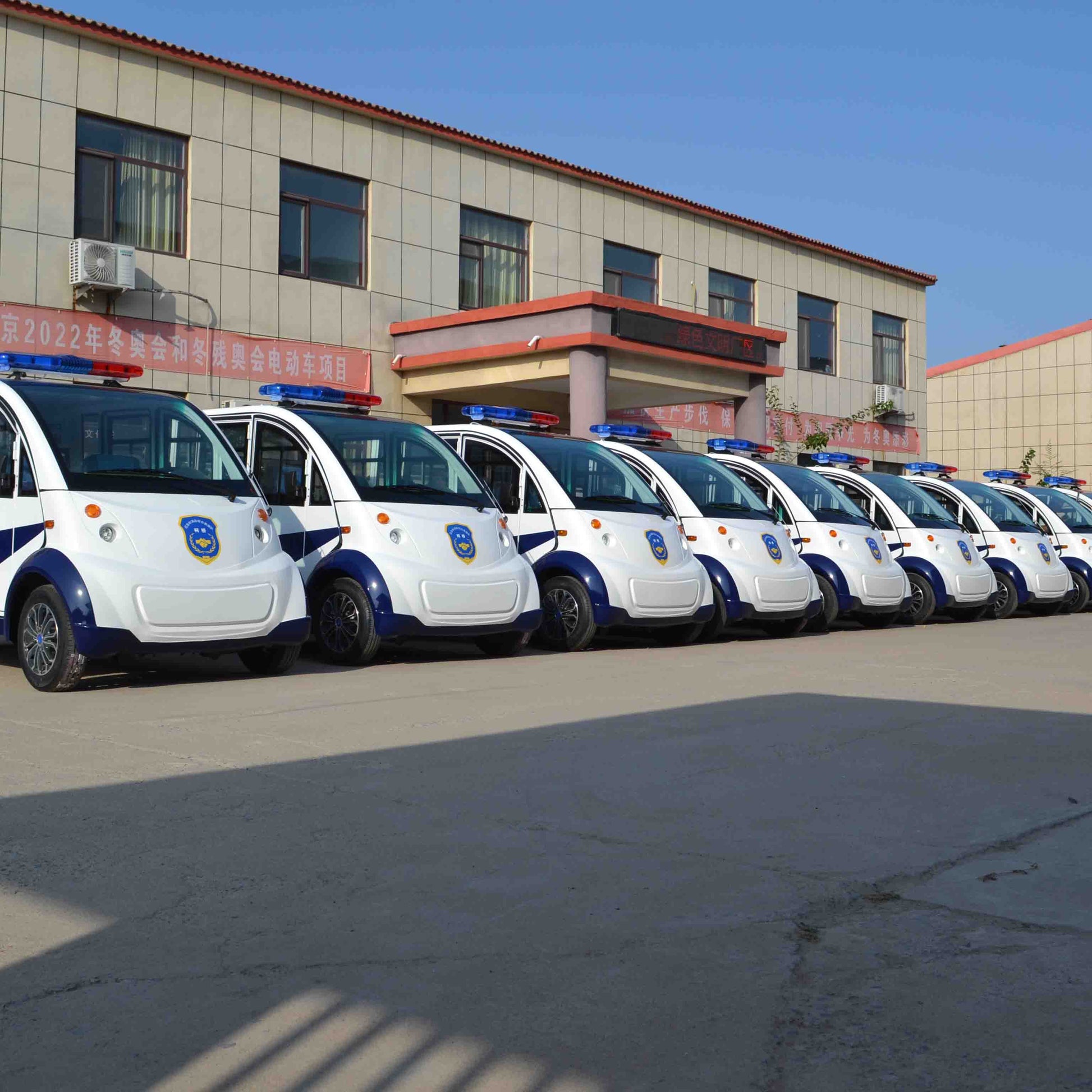

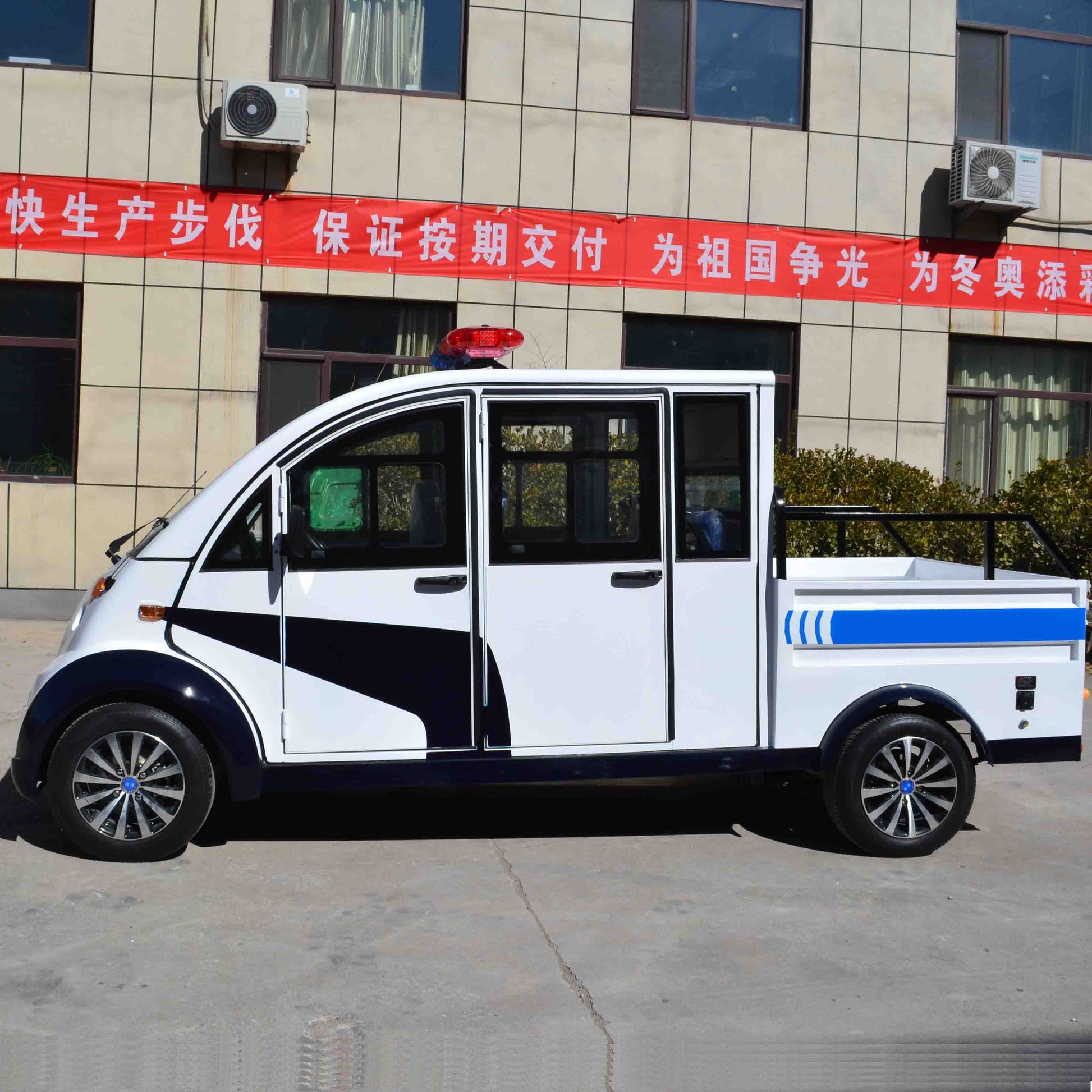

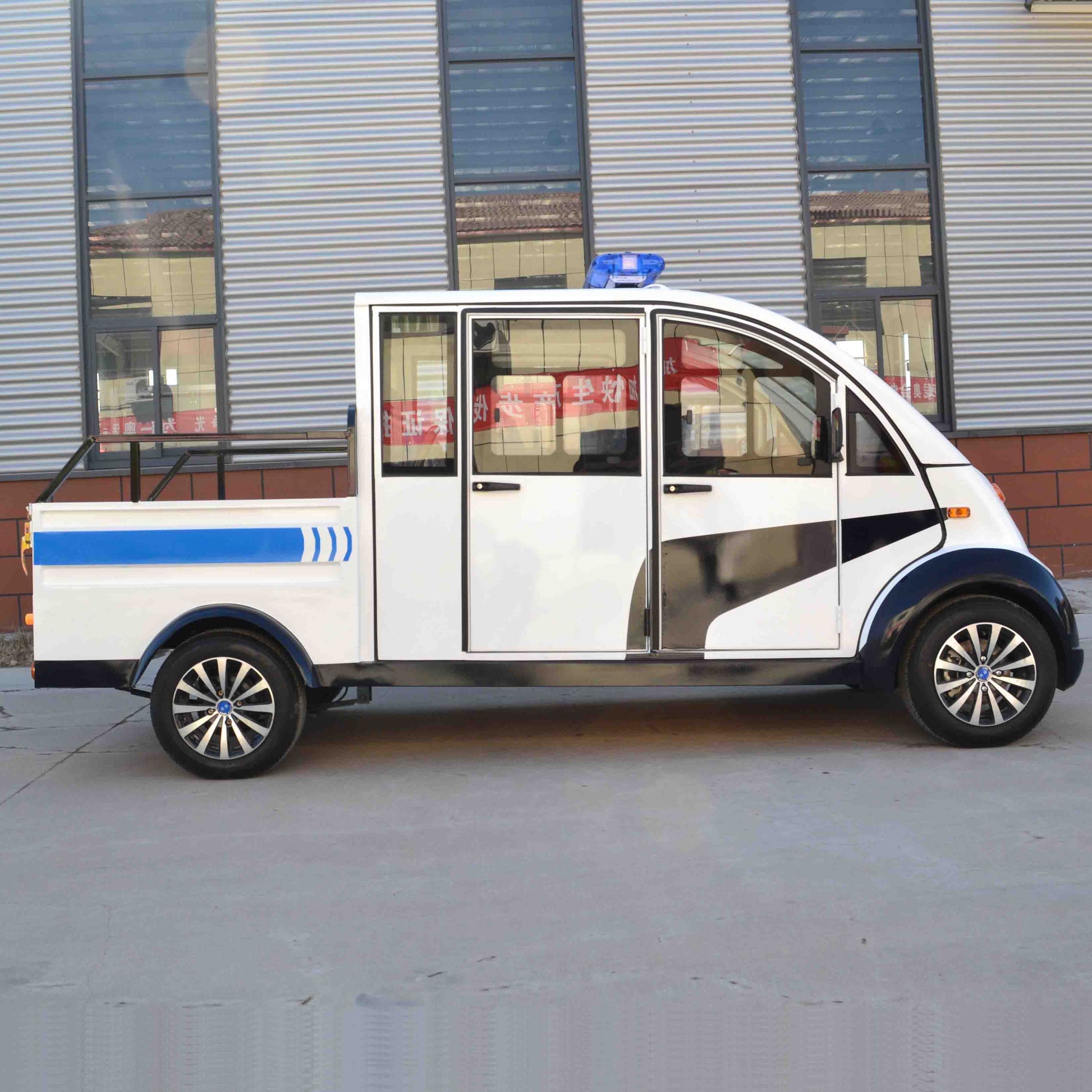

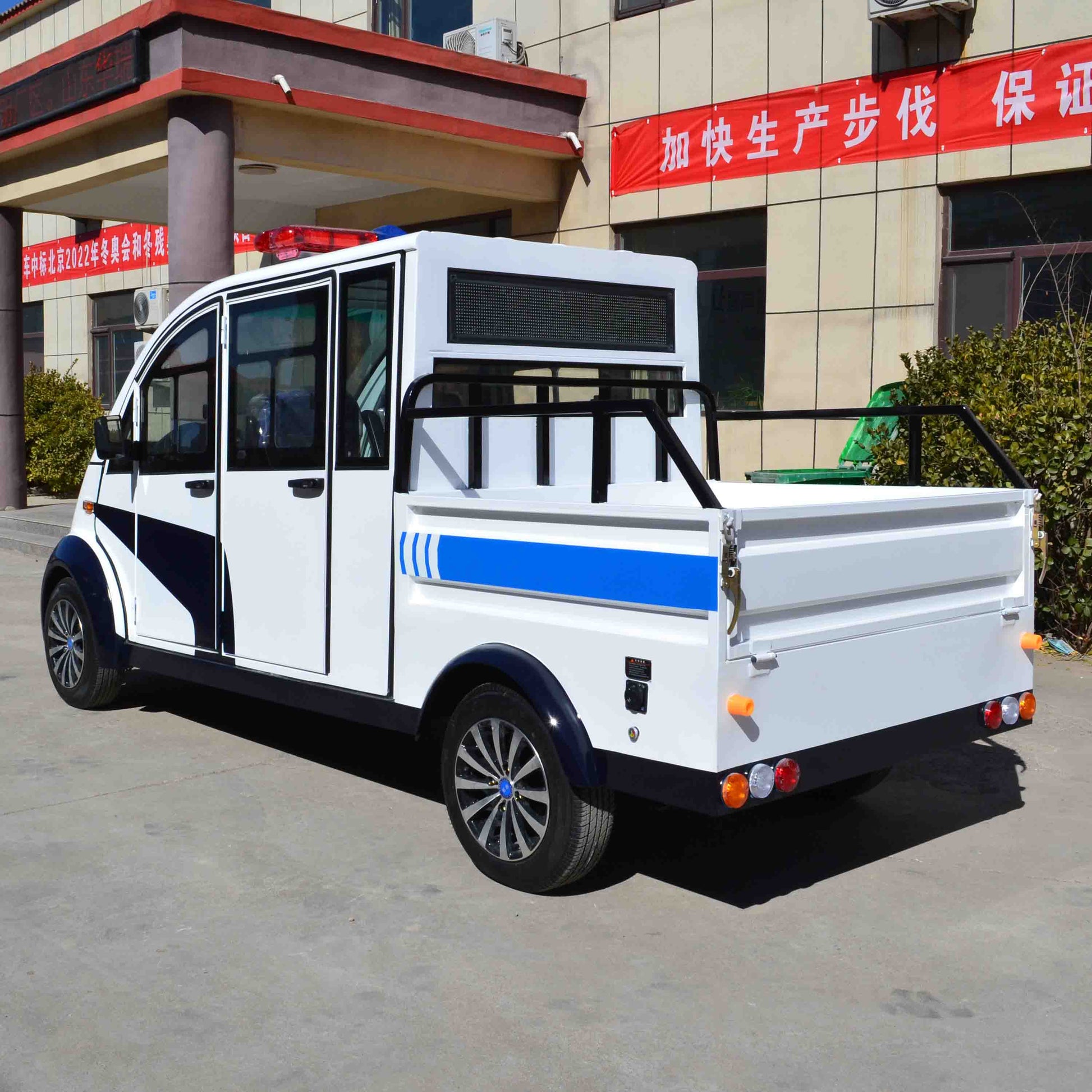

YIPU-PC-TT 5S – 5-Seater Electric Patrol Vehicle | 48V/72V Security Cart with LED Display
The YIPU-PC-TT 5S is a purpose-built 5-seater electric patrol vehicle designed for security patrol, community policing, campus safety, and municipal law enforcement. Available in both 48V and 72V configurations, this model features a unique LED promotional display screen, comfortable seating for five, and all-weather capability with removable steel doors.
🚔 Model Overview
| Feature | Specification |
|---|---|
| Model | YIPU-PC-TT 5S |
| Seating Capacity | 5 passengers (1+1 front + 3-person rear bench) |
| Available Configurations | 48V / 72V |
| Body Dimensions | 4350 × 1650 × 2050 mm |
| Rear Compartment Dimensions | 1200 × 1650 × 320 mm |
| Wheelbase | 2980 mm |
| Front/Rear Track Width | 1365 mm / 1350 mm |
| Minimum Ground Clearance | 150 mm |
| Curb Weight | 950 kg |
| Payload Capacity | 1000 kg |
| Ideal For | Campus security, community patrol, municipal law enforcement, industrial park security |
🔋 Performance Comparison: 48V vs 72V
Choose the configuration that best fits your operational requirements:
| Specification | 48V Configuration | 72V Configuration |
|---|---|---|
| Controller | 48V-350A fully intelligent controller, Brand: Enpower | 72V-350A fully intelligent controller, Brand: Inbol |
| Battery | 6V 200Ah × 8 units (48V), Brand: Tianneng | 6V 200Ah × 12 units (72V), Brand: Tianneng |
| Motor | 5KW three-phase asynchronous AC motor, Brand: Depuda | 5KW three-phase asynchronous AC motor, Brand: Depuda |
| Charger | Aviation aluminum intelligent on-board charger, auto power-off | Aviation aluminum intelligent on-board charger, auto power-off |
| Charging Time | 8-10 hours (80% discharge rate) | 8-10 hours (80% discharge rate) |
| Charging Input Voltage | 220V | 220V |
| Operating Range | 60-80 km | 100-120 km |
| Max Speed | 30 km/h | 30 km/h |
| Max Gradient | 20% | 20% |
| Braking Distance | ≤5 m | ≤5 m |
| Minimum Turning Radius | 5.5 m | 5.5 m |
🪑 Interior & Body System
| Component | Specification |
|---|---|
| Seats |
Front: 1+1 configuration, leather + high-resilience PU + armrests, angle adjuster, blue seats Rear: Three-person bench seat, leather + high-resilience PU + armrests, blue seats |
| Body Construction | Integrated stamped steel body + ABS engineering plastic interior |
| Instrument Panel | LCD display showing voltage, current, speed, mileage, lighting, forward/reverse signals |
| Rearview Mirrors | Manual exterior rearview mirrors |
| LED Display Screen | LED display screen with customizable promotional message cycling function |
| Lighting & Signals | Combined LED headlights, turn signals, taillights, brake lights, electric horn, reverse buzzer |
| Audio System | Premium car audio with MP3 player, professional speakers, USB port, cup holders |
| Switches | Ignition switch, combined light/wiper switch, forward/reverse switch |
| Doors | Removable carbon steel doors (Q235) + national standard tempered glass + built-in sliding windows |
| Frame | Carbon steel welded frame |
🔧 Chassis & Suspension System
| Component | Specification |
|---|---|
| Steering Wheel | Polyurethane foam steering wheel |
| Powertrain System | Continuously Variable Transmission (CVT) system |
| Steering System | Rack and pinion steering with automatic clearance compensation function |
| Front Axle & Suspension | MacPherson independent front suspension |
| Rear Axle & Suspension | Integrated rear axle (18.12:1 ratio) with aviation aluminum differential assembly + high-strength leaf springs + tubular hydraulic shock absorbers |
| Braking System | Front disc / rear drum hydraulic brakes, dual-circuit hydraulic braking, parking brake system, brake booster |
| Wheels & Tires | Aluminum alloy wheels + 165/70R14 tubeless radial tires |
🌟 Key Features & Benefits
| Feature | Benefit |
|---|---|
| LED Promotional Display | Customizable messaging for community announcements, safety alerts, or advertising |
| Dual Voltage Options | Choose 48V for standard patrol or 72V for extended range |
| Premium Components | Enpower/Inbol controllers, Tianneng batteries, Depuda motor – proven reliability |
| Removable Steel Doors | All-weather protection with built-in sliding windows; removable for warm weather patrol |
| Spacious Rear Compartment | 1200×1650×320 mm cargo area for equipment, cones, or supplies |
| 5-Passenger Capacity | Transport full security team in one vehicle |
| MacPherson Front Suspension | Smooth ride over varied terrain |
| Front Disc / Rear Drum Brakes | Reliable stopping power with brake booster assist |
🌍 Ideal Applications
| Industry | How YIPU-PC-TT 5S Is Used |
|---|---|
| University Campuses | Security patrol, student transport, event crowd management |
| Gated Communities | Resident security, property patrol, community messaging |
| Industrial Parks | Facility security, worker transport, equipment movement |
| Municipal Law Enforcement | Neighborhood patrol, community policing, public announcements |
| Shopping Malls | Security patrol, customer assistance, promotional messaging |
| Airports | Terminal patrol, baggage area security |
| Resorts & Hotels | Guest security, property patrol, event information |
🎨 Customization Options
| Option | Available Choices |
|---|---|
| Battery Configuration | 48V (60-80km range) or 72V (100-120km range) |
| LED Display Content | Custom programmed messaging |
| Seat Color | Blue (standard) or custom colors |
| Lighting Package | LED light bar, strobe lights for emergency response |
| Communications | Two-way radio mounting, PA system upgrade |
| Branding | Custom logos, decals, fleet numbering |
| Equipment Mounts | Weapon racks, first aid kits, fire extinguisher mounts |
✅ Why Choose YIPU-PC-TT 5S
| Advantage | Benefit |
|---|---|
| Purpose-Built for Patrol | Designed specifically for security applications |
| Unique LED Display | Stand out with customizable messaging capability |
| All-Weather Capability | Removable doors with glass windows for year-round use |
| Long Range Options | Up to 120km per charge for all-day patrol |
| Premium Components | Top brands ensure reliability and longevity |
| Spacious Cargo Area | Carry all necessary equipment |
| Quiet Operation | Silent electric motor for stealthy approach |
| Zero Emissions | Environmentally friendly, supports green initiatives |
| Export Ready | Full documentation for international shipping |
📦 Warranty & Support
| Coverage | Details |
|---|---|
| Vehicle Warranty | One-year comprehensive warranty |
| Battery Warranty | One-year warranty on Tianneng batteries |
| Technical Support | Lifelong technical support |
| Spare Parts | Available upon request |
📏 Technical Specifications Summary
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 4350 × 1650 × 2050 mm |
| Rear Compartment (L×W×H) | 1200 × 1650 × 320 mm |
| Wheelbase | 2980 mm |
| Front/Rear Track Width | 1365 mm / 1350 mm |
| Minimum Ground Clearance | 150 mm |
| Curb Weight | 950 kg |
| Payload Capacity | 1000 kg |
| Passenger Capacity | 5 persons |
| Motor | 5KW three-phase asynchronous AC motor, Brand: Depuda |
| Controller | 48V-350A (Enpower) or 72V-350A (Inbol) |
| Battery | 48V (6V 200Ah × 8) or 72V (6V 200Ah × 12), Brand: Tianneng |
| Max Speed | 30 km/h |
| Max Gradient | 20% |
| Range | 48V: 60-80 km / 72V: 100-120 km |
| Braking Distance | ≤5 m |
| Minimum Turning Radius | 5.5 m |
| Charging Time | 8-10 hours |
| Charging Input Voltage | 220V |
| Wheels & Tires | Aluminum alloy wheels + 165/70R14 tubeless radial tires |
📦 Shipping & Delivery
| Destination | Estimated Transit Time |
|---|---|
| USA (West Coast) | 18-22 days by sea |
| USA (East Coast) | 25-30 days by sea |
| Israel | 20-25 days by sea |
| Europe | 25-30 days by sea |
| UAE/Middle East | 18-22 days by sea |
| Southeast Asia | 15-20 days by sea |
Shipping Terms: FOB, CIF, DDP available upon request.
