YIPU Electric Vehicles Manufacturer
2-Seater Electric Food Delivery Cart – 48V/72V with Insulated Cargo Box | YIPU-FDC 1T
2-Seater Electric Food Delivery Cart – 48V/72V with Insulated Cargo Box | YIPU-FDC 1T
Regular price
$5,375.00 USD
Regular price
$5,375.00 USD
Sale price
$5,375.00 USD
Quantity
Couldn't load pickup availability
YIPU-FDC 1T – 2-Seater Electric Food Delivery Cart | 48V/72V with Insulated Cargo Box
The YIPU-FDC 1T is a purpose-built electric food delivery cart designed for resorts, hotels, university campuses, golf courses, and large-scale events. Available in both 48V and 72V configurations, this vehicle features a spacious insulated cargo compartment with polyurethane insulation, ensuring food stays at the right temperature during transport.
🚚 Model Overview
| Feature | Specification |
|---|---|
| Model | YIPU-FDC 1T |
| Seating Capacity | 2 passengers (1+1 configuration) |
| Available Configurations | 48V / 72V |
| Body Dimensions | 3700 × 1470 × 2000 mm |
| Cargo Compartment Dimensions | 2200 × 1470 × 1300 mm (customizable) |
| Wheelbase | 1940 mm |
| Front/Rear Track Width | 1235 mm / 1235 mm |
| Minimum Ground Clearance | 150 mm |
| Payload Capacity | 1000 kg |
| Ideal For | Resorts, hotels, university campuses, golf courses, event catering, food delivery services |
🔋 Performance Comparison: 48V vs 72V
Choose the configuration that best fits your operational requirements:
| Specification | 48V Configuration | 72V Configuration |
|---|---|---|
| Controller | 48V-350A fully intelligent controller, Brand: Enpower | 72V-350A fully intelligent controller, Brand: Inbol |
| Battery | 6V 200Ah × 8 units (48V), Brand: Tianneng | 6V 200Ah × 12 units (72V), Brand: Tianneng |
| Motor | 5KW three-phase asynchronous AC motor, Brand: Depuda | 5KW three-phase asynchronous AC motor, Brand: Depuda |
| Charger | Aviation aluminum intelligent on-board charger, auto power-off | Aviation aluminum intelligent on-board charger, auto power-off |
| Charging Time | 8-10 hours (80% discharge rate) | 8-10 hours (80% discharge rate) |
| Charging Input Voltage | 220V | 220V |
| Operating Range | 60-80 km | 100-120 km |
| Max Speed | 30 km/h | 30 km/h |
| Max Gradient | 20% | 20% |
| Braking Distance | ≤4 m | ≤4 m |
| Minimum Turning Radius | 4.5 m | 4.5 m |

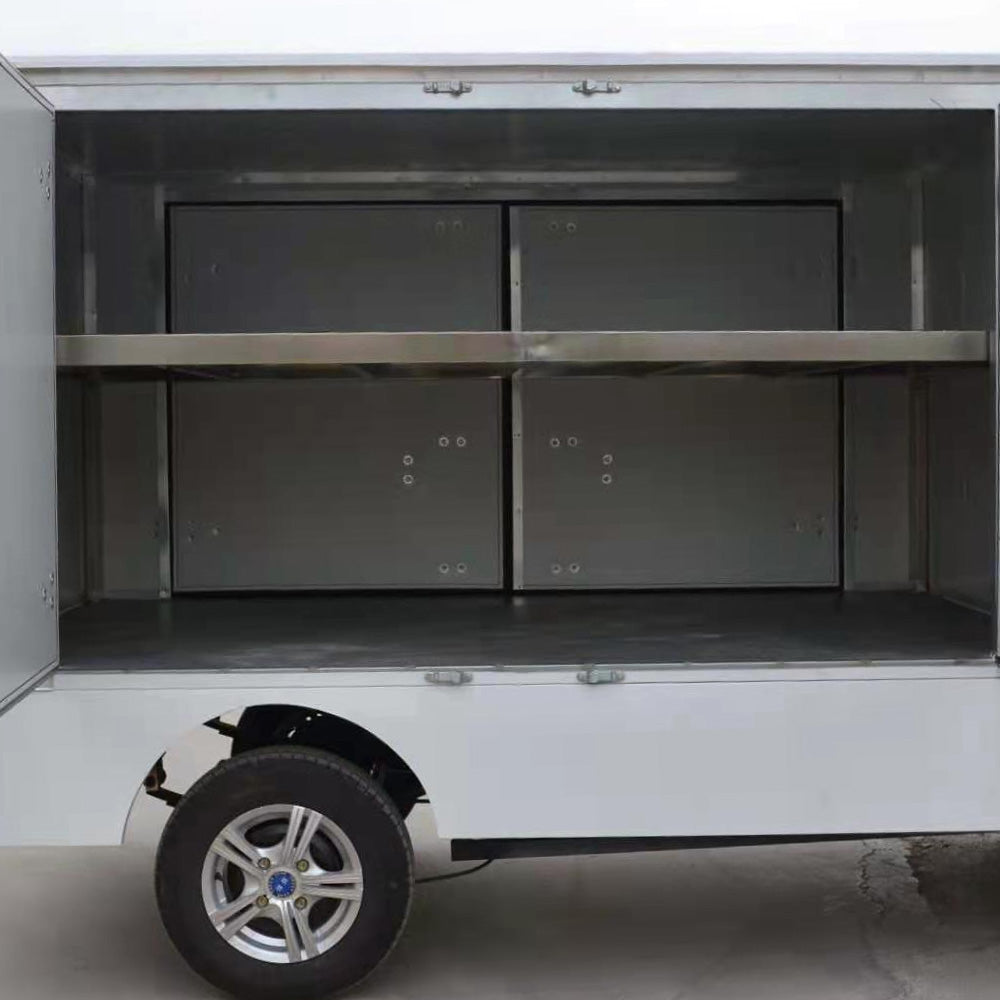

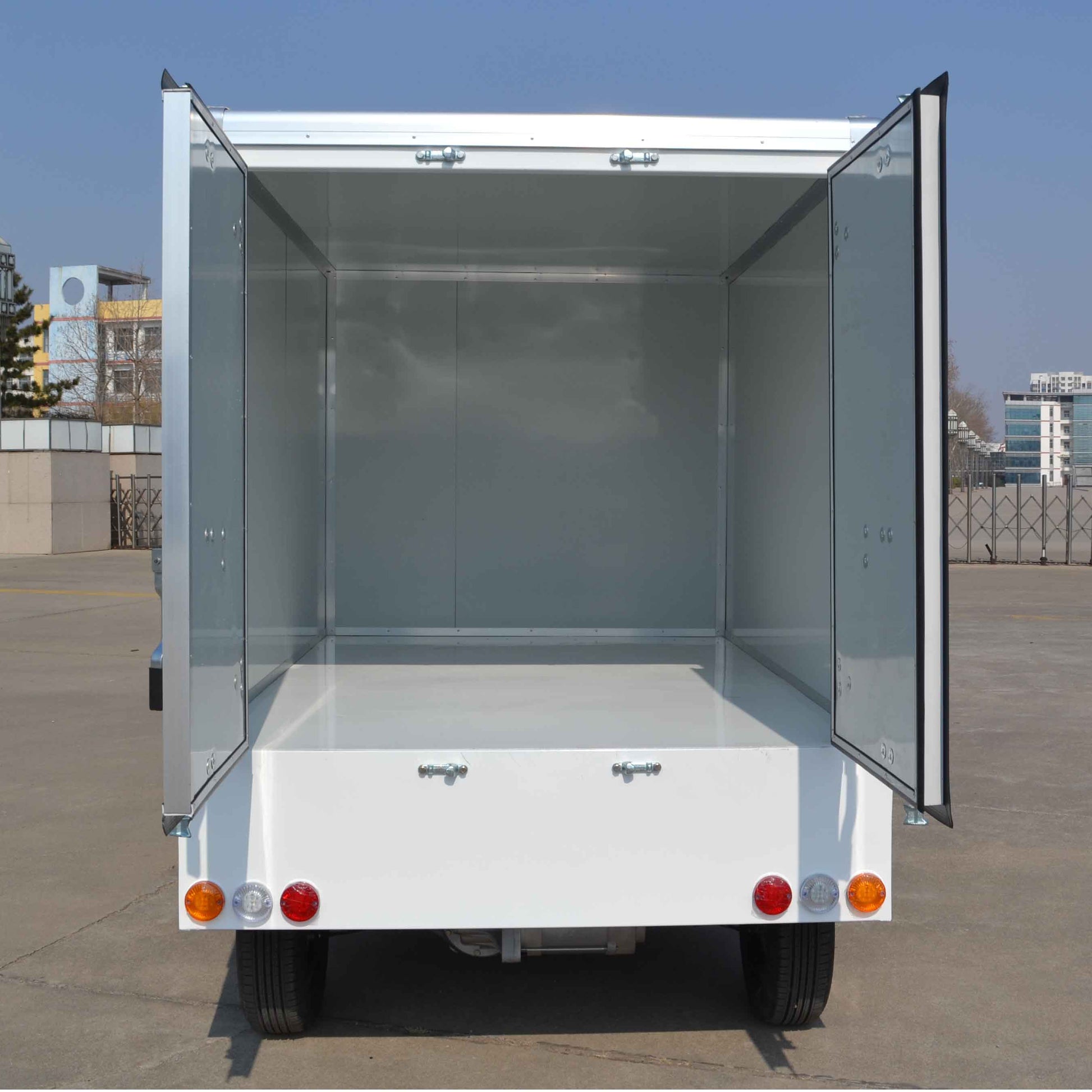

📦 Cargo Compartment
| Feature | Specification |
|---|---|
| Cargo Box Dimensions | 2200 × 1470 × 1300 mm (customizable) |
| Insulation Material | Polyurethane insulated material |
| Door Configuration | Customizable (standard: single-side opening) |
| Capacity | 1000 kg payload |
The insulated cargo box keeps food items at optimal temperature during transport, making it ideal for:
-
Hot meal delivery
-
Beverage service
-
Catering operations
-
Frozen or chilled goods transport
🪑 Interior & Body System
| Component | Specification |
|---|---|
| Seats | Front: 1+1 configuration, leather + high-resilience PU, beige seats |
| Body Construction | Carbon steel frame (Q235) + Sheet metal body + ABS engineering plastic molded dashboard |
| Instrument Panel | LCD display showing voltage, current, speed, mileage, lighting, forward/reverse signals |
| Rearview Mirrors | Wide-view adjustable manual exterior rearview mirrors |
| Lighting & Signals | High-brightness LED headlights, turn signals, taillights, brake lights, reverse lights, electric horn |
| Audio System | Premium car audio with MP3 player, professional speakers, USB port |
| Switches | Ignition switch, combined light/wiper switch, forward/reverse switch |
| Doors | Removable carbon steel doors (Q235) with built-in tempered glass sliding windows |
| Frame | Welded carbon steel frame (Q235) with high-temperature anti-rust powder coating |
| Steering Wheel | Luxury polyurethane foam steering wheel |
🔧 Chassis & Suspension System
| Component | Specification |
|---|---|
| Powertrain System | Automatic transmission / CVT system |
| Steering System | Rack and pinion steering (automatic clearance compensation) + EPS electronic power steering |
| Front Axle & Suspension | MacPherson independent front suspension |
| Rear Axle & Suspension | Integrated rear axle / aviation aluminum differential assembly / high-strength leaf springs / tubular hydraulic shock absorbers |
| Braking System | Front disc / rear drum hydraulic brakes, dual-circuit hydraulic braking, parking brake system, brake booster |
| Wheels & Tires | Aluminum alloy wheels + 155R12LT tubeless radial tires |
🌟 Key Features & Benefits
| Feature | Benefit |
|---|---|
| Insulated Cargo Box | Polyurethane insulation maintains food temperature |
| Spacious Capacity | 2200×1470×1300mm cargo area, 1000kg payload |
| Dual Voltage Options | Choose 48V for standard use or 72V for extended range |
| Premium Components | Enpower/Inbol controllers, Tianneng batteries, Depuda motor |
| Removable Doors | All-weather protection; removable for warm weather operation |
| MacPherson Front Suspension | Smooth ride over varied terrain |
| Front Disc Brakes | Reliable stopping power with brake booster |
| Quiet Electric Operation | No noise disturbance in resort or campus environments |
| Zero Emissions | Environmentally friendly, supports green initiatives |
| Customizable Cargo Box | Door configuration can be tailored to your needs |
🌍 Ideal Applications
| Industry | How YIPU-FDC 1T Is Used |
|---|---|
| Resorts & Hotels | Room service delivery, beachside food service, event catering |
| University Campuses | Mobile dining options, food delivery to dormitories |
| Golf Courses | Beverage cart service, snack delivery on course |
| Corporate Campuses | Employee meal delivery, catering transport |
| Event Venues | Concession support, vendor food transport |
| Stadiums & Arenas | In-seat food and beverage delivery |
| Senior Living Communities | Meal delivery to residents |
| Food Delivery Services | Last-mile food transport |
🎨 Customization Options
| Option | Available Choices |
|---|---|
| Battery Configuration | 48V (60-80km range) or 72V (100-120km range) |
| Cargo Box Dimensions | Custom sizing available |
| Door Configuration | Single-side, double-side, or rear opening |
| Cargo Box Color | Custom colors available |
| Shelving/Racking | Interior shelving for organized storage |
| Refrigeration | Active refrigeration option (upon request) |
| Heating | Food warming option (upon request) |
| Branding | Custom logos, decals, fleet numbering |
| Seat Color | Beige (standard) or custom colors |
✅ Why Choose YIPU-FDC 1T
| Advantage | Benefit |
|---|---|
| Purpose-Built for Food Delivery | Designed specifically for food transport operations |
| Insulated Compartment | Maintains food temperature, reduces waste |
| Large Payload Capacity | 1000kg – carry substantial food inventory |
| Premium Components | Enpower/Inbol controllers, Tianneng batteries, Depuda motor |
| All-Weather Operation | Removable doors with glass windows |
| Long Range Options | Up to 120km range for all-day delivery |
| Quiet Operation | Silent electric motor – ideal for sensitive environments |
| Zero Emissions | Environmentally friendly, safe for indoor/outdoor use |
| Customizable | Tailor cargo box to your specific needs |
| Export Ready | Full documentation for international shipping |
📦 Warranty & Support
| Coverage | Details |
|---|---|
| Vehicle Warranty | One-year comprehensive warranty |
| Battery Warranty | One-year warranty on Tianneng batteries |
| Technical Support | Lifelong technical support |
| Spare Parts | Available upon request |
📏 Technical Specifications Summary
| Specification | Details |
|---|---|
| Dimensions (L×W×H) | 3700 × 1470 × 2000 mm |
| Cargo Compartment (L×W×H) | 2200 × 1470 × 1300 mm (customizable) |
| Wheelbase | 1940 mm |
| Front/Rear Track Width | 1235 mm / 1235 mm |
| Minimum Ground Clearance | 150 mm |
| Payload Capacity | 1000 kg |
| Passenger Capacity | 2 persons |
| Motor | 5KW three-phase asynchronous AC motor, Brand: Depuda |
| Controller | 48V-350A (Enpower) or 72V-350A (Inbol) |
| Battery | 48V (6V 200Ah × 8) or 72V (6V 200Ah × 12), Brand: Tianneng |
| Max Speed | 30 km/h |
| Max Gradient | 20% |
| Range | 48V: 60-80 km / 72V: 100-120 km |
| Braking Distance | ≤4 m |
| Minimum Turning Radius | 4.5 m |
| Charging Time | 8-10 hours |
| Charging Input Voltage | 220V |
| Wheels & Tires | Aluminum alloy wheels + 155R12LT tubeless radial tires |
📦 Shipping & Delivery
| Destination | Estimated Transit Time |
|---|---|
| USA (West Coast) | 18-22 days by sea |
| USA (East Coast) | 25-30 days by sea |
| Israel | 20-25 days by sea |
| Europe | 25-30 days by sea |
| UAE/Middle East | 18-22 days by sea |
| Southeast Asia | 15-20 days by sea |
Shipping Terms: FOB, CIF, DDP available upon request.
👉 Inquire About YIPU-FDC 1T Pricing & Availability
